The Process Console serves as the primary operator interface providing access to all
process graphic screens, setpoint entry displays, reports, and system diagnostic
features. PCon also provides a secure development environment for creating and
animating process displays.
process graphic screens, setpoint entry displays, reports, and system diagnostic
features. PCon also provides a secure development environment for creating and
animating process displays.

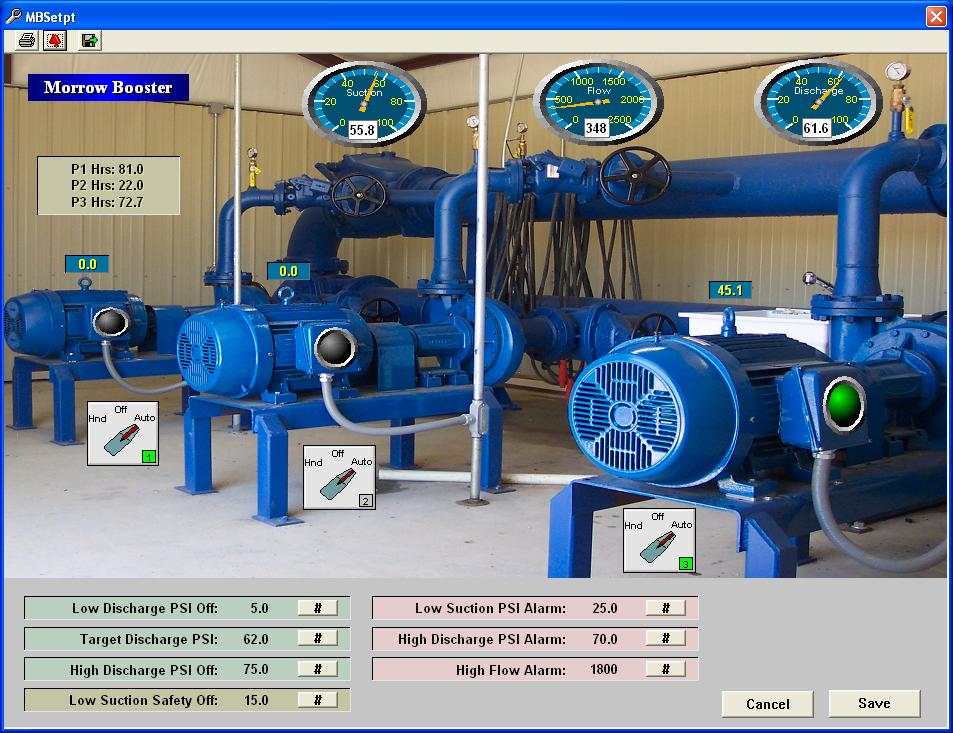

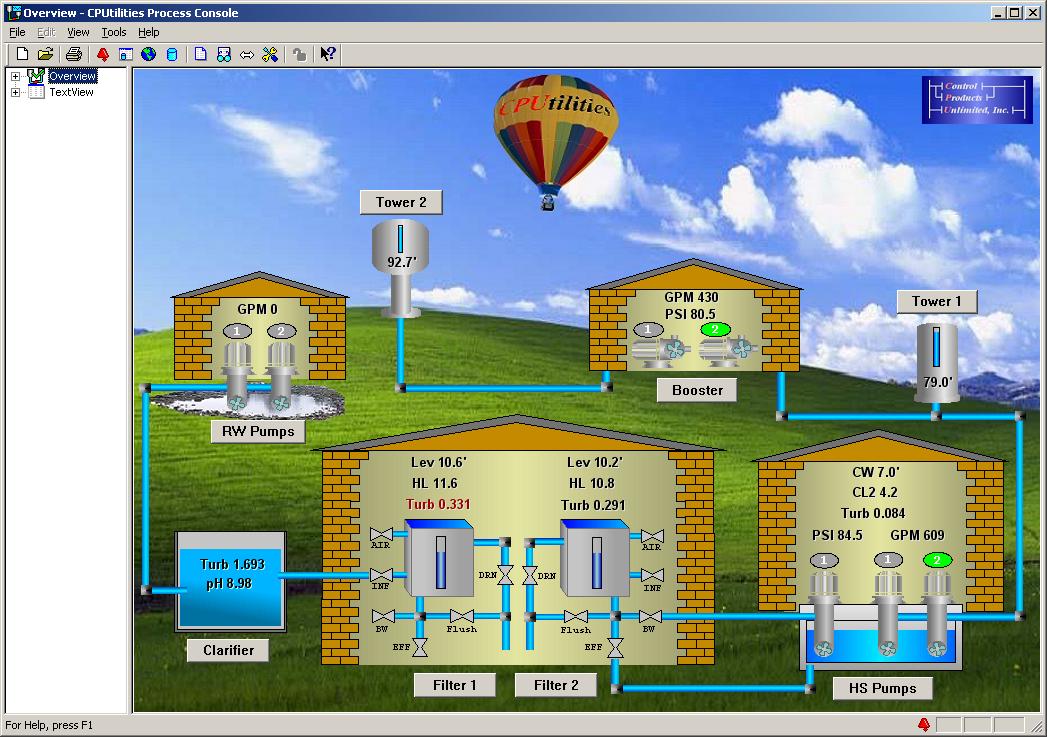

Click Image for a Larger View
For high quality vector based graphical displays, PCon is tightly integrated with Generic
Logic Inc.'s Graphics Builder product. The GLG Graphics Builder is a powerful
development environment allowing simple to complex drawings to be rendered and
animated in three dimensions. Generic Logic Inc. provides a vast library of pre-built
Widgets for dials and meters, toggles and buttons, graphs, avionic gauges, and other
graphical components allowing screens to be quickly and efficiently created.
PCon's screen animator exposes object resources in a GLG drawing and assigns them to
I/O points using an intuitive tag browser interface. GLG resources can be addressed as
an input or output object allowing drawings to accept operator entries as well as
displaying the status of items comprising the manufacturing processes.
Logic Inc.'s Graphics Builder product. The GLG Graphics Builder is a powerful
development environment allowing simple to complex drawings to be rendered and
animated in three dimensions. Generic Logic Inc. provides a vast library of pre-built
Widgets for dials and meters, toggles and buttons, graphs, avionic gauges, and other
graphical components allowing screens to be quickly and efficiently created.
PCon's screen animator exposes object resources in a GLG drawing and assigns them to
I/O points using an intuitive tag browser interface. GLG resources can be addressed as
an input or output object allowing drawings to accept operator entries as well as
displaying the status of items comprising the manufacturing processes.

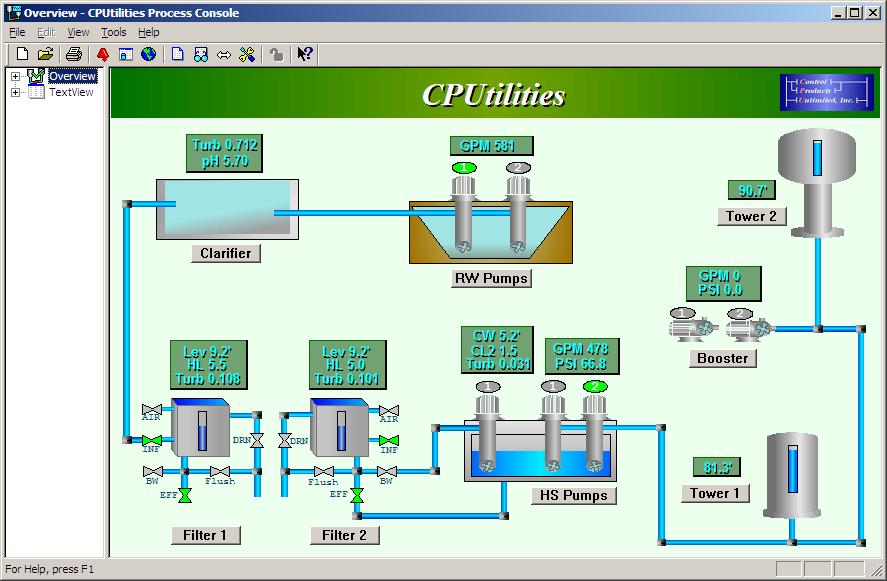

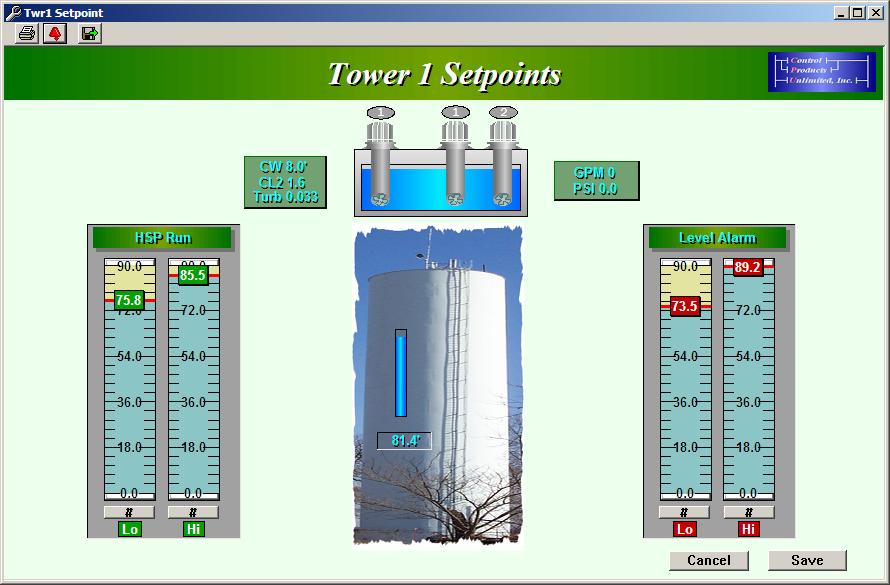

Click Image for a Larger View
Although PCon provides built in support for non-graphical process and setpoint screen
development, adding the power of the GLG Graphics Toolkit to the solution is highly
recommended. The GLG Graphics Builder is a royalty free development environment
and may be purchased directly from Control Products Unlimited, Inc.
development, adding the power of the GLG Graphics Toolkit to the solution is highly
recommended. The GLG Graphics Builder is a royalty free development environment
and may be purchased directly from Control Products Unlimited, Inc.
PCon
